GB /T 5785 – 2000 – Bu lông lục giác

Name: GB /T 5785 – 2000 – Bu lông lục giác
Brand: Hoàng Hà
Price: 500 VND
Availability: InStock
Rating: 5 (1 reviews)

500 ₫

0944.707.888 0985.035.888

Mô tả

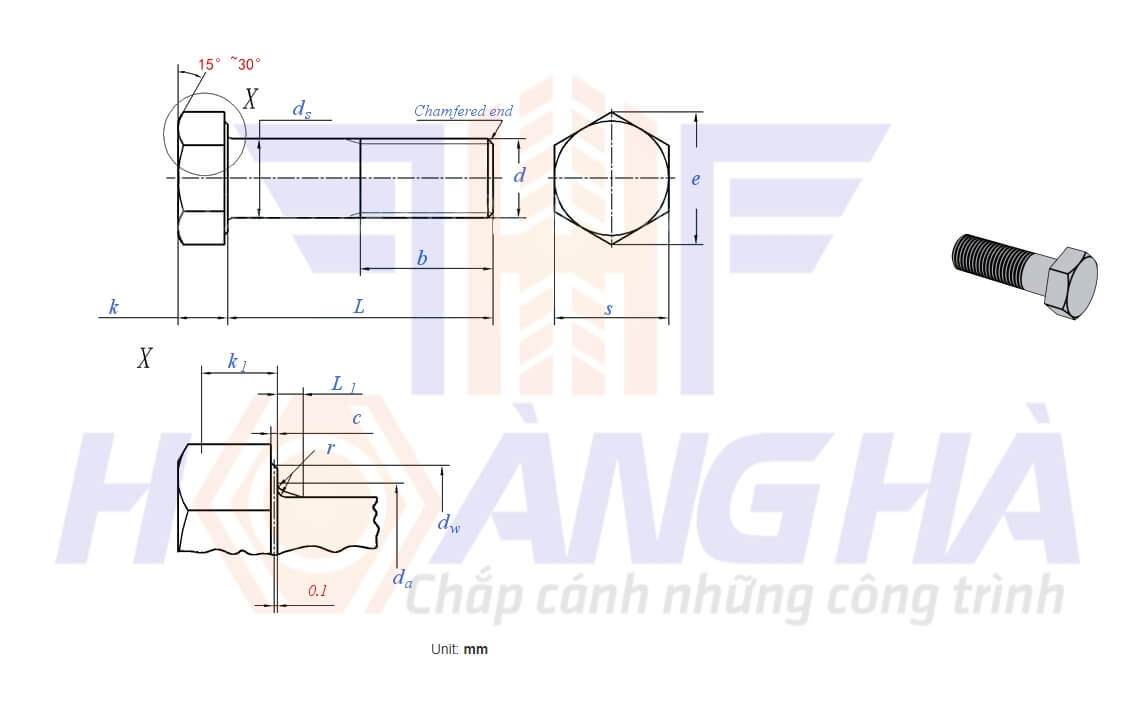

GB /T 5785 – 2000 – Bu lông lục giác

Screw Thread			M8	M10	(M10)	M12	(M12)	(M14)	M16	(M18)	M20	(M20)	(M22)	M24
P	Pitch		1	1	1.25	1.5	1.25	1.5	1.5	1.5	1.5	2	1.5	2
b	L≤125		22	26	26	30	30	34	38	42	46	46	50	54
	125＜L≤200		28	32	32	36	36	40	44	48	52	52	56	60
	L＞200		41	45	45	49	49	57	57	61	65	65	69	73
c	max		0.6	0.6	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8	0.8
c	min		0.15	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2	0.2
d_a	max		9.2	11.2	11.2	13.7	13.7	15.7	17.7	20.2	22.4	22.4	24.4	26.4
d_s	max=nominal size		8.00	10.00	10.00	12.00	12.00	14.00	16.00	18.00	20.00	20.00	22.00	24.00
	Grade A	min	7.78	9.78	9.78	11.73	11.73	13.73	15.73	17.73	19.67	19.67	21.67	23.67
	Grade B	min	7.64	9.64	9.64	11.57	11.57	13.54	15.57	17.57	19.48	19.48	21.48	23.48
d_w	Grade A	min	11.63	14.63	14.63	16.63	16.63	19.64	22.49	25.34	28.19	28.19	31.71	33.61
d_w	Grade B	min	11.47	14.47	14.47	16.47	16.47	19.15	22	24.85	27.7	27.7	31.35	33.25
e	Grade A	min	14.38	17.77	17.77	20.03	20.03	23.36	26.75	30.14	33.53	33.53	37.72	39.98
e	Grade B	min	14.20	17.59	17.59	19.85	19.85	22.78	26.17	29.56	32.95	32.95	37.29	39.55
L₁	max		2	2	2	3	3	3	3	3	4	4	4	4
k	Nominal Size		5.3	6.4	6.4	7.5	7.5	8.8	10.0	11.5	12.5	12.5	14.0	15.0
	Grade A	max	5.45	6.58	6.58	7.68	7.68	8.98	10.18	11.715	12.715	12.715	14.215	15.215
	Grade A	min	5.15	6.22	6.22	7.32	7.32	8.62	9.82	11.285	12.285	12.285	13.785	14.785
	Grade B	max	5.54	6.69	6.69	7.79	7.79	9.09	10.29	11.85	12.85	12.85	14.35	15.35
	Grade B	min	5.06	6.11	6.11	7.21	7.21	8.51	9.71	11.15	12.15	12.15	13.65	14.65
k₁	Grade A	min	3.61	4.35	4.35	5.12	5.12	6.03	6.87	7.9	8.6	8.6	9.65	10.35
k₁	Grade B	min	3.54	4.28	4.28	5.05	5.05	5.96	6.8	7.81	8.51	8.51	9.56	10.26
r	min		0.4	0.4	0.4	0.6	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8
s	max=nominal size		13.00	16.00	16.00	18.00	18.00	21.00	24.00	27.00	30.00	30.00	34.00	36.00
	Grade A	min	12.73	15.73	15.73	17.73	17.73	20.67	23.67	26.67	29.67	29.67	33.38	35.38
	Grade B	min	12.57	15.57	15.57	17.57	17.57	20.16	23.16	26.16	29.16	29.16	33.00	35.00
Weight of per 1000 steel products(≈kg)			–	–	–	–	–	–	–	–	–	–	–	–
Length of Thread b			–	–	–	–	–	–	–	–	–	–	–	–

Screw Thread			(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)	M56	(M60)	M64
P	Pitch		2	2	2	3	3	3	3	3	4	4	4	4
b	L≤125		60	66	–	–	–	–	–	–	–	–	–	–
	125＜L≤200		66	72	78	84	90	96	102	108	116	–	–	–
	L＞200		79	85	91	97	103	109	115	121	129	137	145	153
c	max		0.8	0.8	0.8	0.8	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
c	min		0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
d_a	max		30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6	63	67	71
d_s	max=nominal size		27.00	30.00	33.00	36.00	39.00	42.00	45.00	48.00	52.00	56.00	60.00	64.00
	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
	Grade B	min	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26	55.26	59.26	63.26
d_w	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
d_w	Grade B	min	38	42.75	46.55	51.11	55.86	59.95	64.7	69.45	74.2	78.66	83.41	88.16
e	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
e	Grade B	min	45.20	50.85	55.37	60.79	66.44	71.30	76.95	82.60	88.25	93.56	99.21	104.86
L₁	max		6	6	6	6	6	8	8	10	10	12	12	13
k	Nominal Size		17.0	18.7	21.0	22.5	25.0	26.0	28.0	30.0	33.0	35.0	38.0	40.0
	Grade A	max	–	–	–	–	–	–	–	–	–	–	–	–
	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
	Grade B	max	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.50	35.50	38.50	40.50
	Grade B	min	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.50	34.50	37.50	39.50
k₁	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
k₁	Grade B	min	11.66	12.8	14.41	15.46	17.21	17.91	19.31	20.71	22.75	24.15	26.25	27.65
r	min		1	1	1	1	1	1.2	1.2	1.6	1.6	2	2	2
s	max=nominal size		41.00	46.00	50.00	55.00	60.00	65.00	70.00	75.00	80.00	85.00	90.00	95.00
	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
	Grade B	min	40.00	45.00	49.00	53.80	58.80	63.10	68.10	73.10	78.10	82.80	87.80	92.80
Weight of per 1000 steel products(≈kg)			–	–	–	–	–	–	–	–	–	–	–	–
Length of Thread b			–	–	–	–	–	–	–	–	–	–	–	–
