GB 5782 – 1986 – Bu lông lục giác

500 ₫

Chất liệu: Inox 201, 304, 316, 316L, Thép
Giá sản phẩm: Liên hệ để có giá tốt nhất
Liên hệ báo giá: 0944.707.888 - 0985.035.888
Email: [email protected]
Địa chỉ mua hàng: Nhà 68, Đường Mương Nổi, Xã Tân Triều, Huyện Thanh Trì, TP Hà Nội

Mô tả

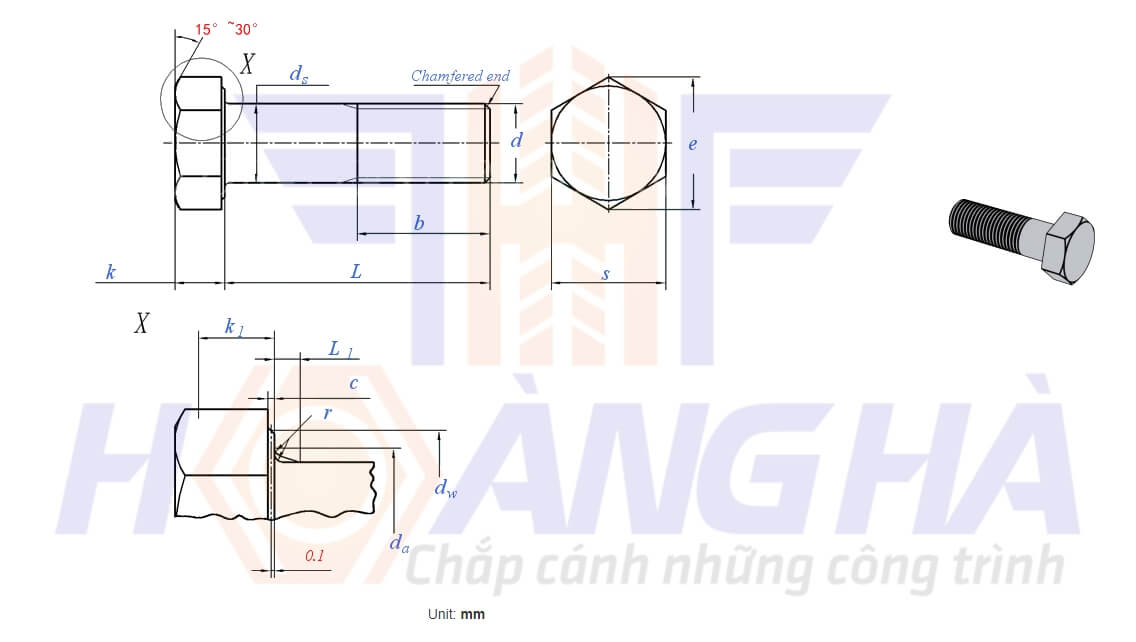

GB 5782 – 1986 – Bu lông lục giác

Screw Thread			M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24
P	Pitch		0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
b	L≤125		12	14	16	18	22	26	30	34	38	42	46	50	54
	125＜L≤200		–	–	–	–	28	32	36	40	44	48	52	56	60
	L＞200		–	–	–	–	–	–	–	53	57	61	65	69	73
c	max		0.4	0.4	0.5	0.5	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8
c	min		0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2
d_a	max		3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4
d_s	max		3	4	5	6	8	10	12	14	16	18	20	22	24
	Grade A	min	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73	19.67	21.67	23.67
	Grade B	min	–	–	4.7	5.7	7.64	9.64	11.57	13.57	15.57	17.57	19.48	21.48	23.48
d_w	Grade A	min	4.6	5.9	6.9	8.9	11.6	14.6	16.6	19.6	22.5	25.3	28.2	31.7	33.6
d_w	Grade B	min	–	–	6.7	8.7	11.4	14.4	16.4	19.2	22	24.8	27.7	31.4	33.2
e	Grade A	min	6.07	7.66	8.79	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98
e	Grade B	min	–	–	8.63	10.89	14.2	17.59	19.85	22.78	26.17	29.56	32.95	37.29	39.55
L₁	max		1	1.2	1.2	1.4	2	2	3	3	3	3	4	4	4
k	Nominal Size		2	2.8	3.5	4	5.3	6.4	7.5	8.8	10	11.5	12.5	14	15
	Grade A	max	2.12	2.92	3.65	4.15	5.45	6.58	7.68	8.98	10.18	11.72	12.72	14.22	15.22
	Grade A	min	1.88	2.68	3.35	3.85	5.15	6.22	7.32	8.62	9.82	11.28	12.28	13.78	14.78
	Grade B	max	–	–	3.74	4.24	5.54	6.69	7.79	9.09	10.29	11.85	12.85	14.35	15.35
	Grade B	min	–	–	3.26	3.76	5.06	6.11	7.21	8.51	9.71	11.15	12.15	13.65	14.65
k₁	Grade A	min	1.3	1.9	2.3	2.7	3.6	4.4	5.1	6	6.9	7.9	8.6	9.6	10.3
k₁	Grade B	min	–	–	2.3	2.6	3.5	4.3	5	6	6.8	7.8	8.5	9.5	10.2
r	min		0.1	0.2	0.2	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8
s	max=nominal size		5.5	7	8	10	13	16	18	21	24	27	30	34	36
	Grade A	min	5.32	6.78	7.78	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38
	Grade B	min	–	–	7.64	9.64	12.57	15.57	17.57	20.16	23.16	26.16	29.16	33	35
Length of Thread b			–	–	–	–	–	–	–	–	–	–	–	–	–

Screw Thread			(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)	M56	(M60)	M64
P	Pitch		3	3.5	3.5	4	4	4.5	4.5	5	5	5.5	5.5	6
b	L≤125		60	66	72	78	84	–	–	–	–	–	–	–
	125＜L≤200		66	72	78	84	90	96	102	108	116	124	132	140
	L＞200		79	85	91	97	103	109	115	121	129	137	145	153
c	max		0.8	0.8	0.8	0.8	1	1	1	1	1	1	1	1
c	min		0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
d_a	max		30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6	63	67	71
d_s	max		27	30	33	36	39	42	45	48	52	56	60	64
	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
	Grade B	min	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26	55.26	59.26	63.26
d_w	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
d_w	Grade B	min	38	42.7	46.6	51.1	55.9	60.6	64.7	69.4	74.2	78.7	83.4	88.2
e	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
e	Grade B	min	45.2	50.85	55.37	60.79	66.44	72.02	76.95	82.6	88.25	93.56	99.21	104.86
L₁	max		6	6	6	6	6	8	8	10	10	12	12	13
k	Nominal Size		17	18.7	21	22.5	25	26	28	30	33	35	38	40
	Grade A	max	–	–	–	–	–	–	–	–	–	–	–	–
	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
	Grade B	max	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5	35.5	38.5	40.5
	Grade B	min	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5	34.5	37.5	39.5
k₁	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
k₁	Grade B	min	11.7	12.8	14.4	15.5	17.21	17.9	19.3	20.9	22.8	24.2	26.2	27.6
r	min		1	1	1	1	1	1.2	1.2	1.6	1.6	2	2	2
s	max=nominal size		41	46	50	55	60	65	70	75	80	85	90	95
	Grade A	min	–	–	–	–	–	–	–	–	–	–	–	–
	Grade B	min	40	45	49	53.8	58.8	63.8	68.1	73.1	78.1	82.8	87.8	92.8
Length of Thread b			–	–	–	–	–	–	–	–	–	–	–	–

GB 5782 – 1986 – Bu lông lục giác

GB /T 5780 – 2016 – Bu lông lục giác

GB 5783 – 1986 – Bu lông lục giác

GB /T 16674.1 – 2004 – Bu lông long đen

GB /T 16674.2 (R) – 2004 – Bu lông liền long đen

GB 5789 – 1986 – Bu lông liền long đen

GB /T 2256 – 1991 – Bu lông liền long đen

GB /T 5781 – 2000 – Bu lông lục giác

GB /T 16674.2 – 2016 – Bu lông liền long đen

GB 5782 – 1986 – Bu lông lục giác
